Raven Eye Flow Meter
540 Technologies offers a full line of leading-edge leak-detecting data loggers from FCS to help you locate the leaks in your underground network. Using acoustical noise sensors, loggers can operate independently or can be integrated into a monitoring network using the Omnicoll system.
Non-Contact Radar Flowmeter

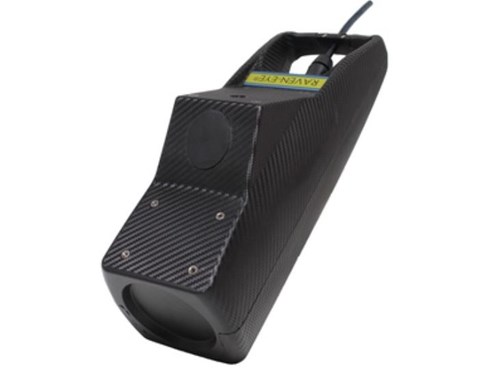

The RAVEN-EYE® is the new non-contact RADAR area/velocity flowmeter for open channel flow measurements from Flow-Tronic. It combines state of the art non-contact measuring technology which measures flow from above the water surface with easy integration into existing SCADA or telemetry systems.
Radar area/velocity flow sensors have been in use for many years, so why is the RAVEN-EYE® so revolutionary? Using the latest design, development and production methods, has allowed Flow-Tronic to manufacture a high quality new generation radar sensor at a price that will make it your first choice for open channel and sewer flow measurement, but affordability is only one of the RAVEN-EYE®’s benefits.
Key Features
- Accurate flow measurement
- Cost-effective
- Portable or stationary version available
- Non-contact: the sensor is positioned above the water surface
- Easy installation
- Robust IP68 (PU) enclosure
- Totally sealed sensor: no joints, seals or screws
- Developed for field applications
- Velocity distribution analysis & self-learning technology for average velocity calculation
- For channels from 100 mm and upwards
- Easy integration with SCADA, PLC or telemetry systems
- Direct RS485 interface available (no monitor or converter necessary)
- One 4-20 mA configurable output
- Perfect solution for difficult flow conditions: high solids content, high temperature, shallow and caustic flows, high velocities and large open channels
- No maintenance
- Auto-diagnostic system
Applications
- Sewer/Channel Networks Monitoring
- Wastewater Treatment Plants
- Industry & Hydropower
- Cooling Water
- Rivers, Channels & Irrigation
